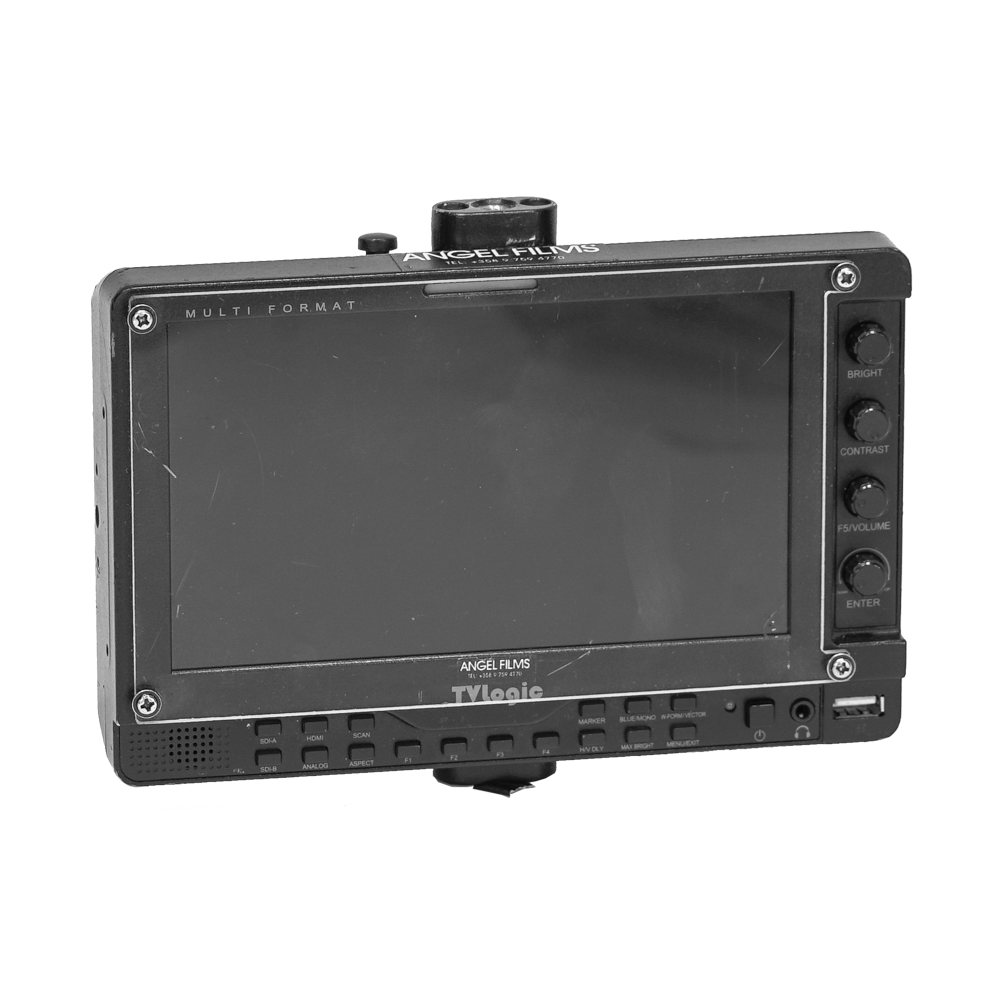

TV-Logic LVM-075A – 7″ Onboard Monitor

image-1096038

103,00  / Day

(412,00  / Week)

You will be able to set the timeframe for your rental from the order list.

Product Information

7″ field and studio monitor featuring a 1080p display, 170° wide viewing angle, and professional broadcast functionality. It has built-in 1D LUTs that convert C-log and S-log 1/2/3 input signals to Rec.709, so you won’t have to load an inline LUT to see Rec.709 correctly.

Specifications

  • Size: 7" (FullHD 1920x1080 LCD)
  • Brightness: 600 Nits
  • Bit Depth / Gamut: 8bit / REC709
  • Input: 2x BNC (3GSDI), 1x HDMI Type A, 3x RCA (Analog)
  • Output: 1x BNC (3GSDI), 1x HDMI Type A
  • Audio In: Embedded SDI/HDMI, 3.5mm Plug
  • Audio Out: Embedded SDI/HDMI, 3.5mm Plug Headphone, Speaker
  • Data I/O: USB, Ethernet
  • Power In: 4-pin MiniXLR (12V)
  • Power Consumption: 20W (max)
  • Weight: 1.04kg
  • HDMI > SDI Conversion
